In-line pits - to suit K300 / KS300

In-line pits are available with integrally cast in galvanised (G) or stainless steel (S) edge rails. Grates are secured with removable QuickLok bars.

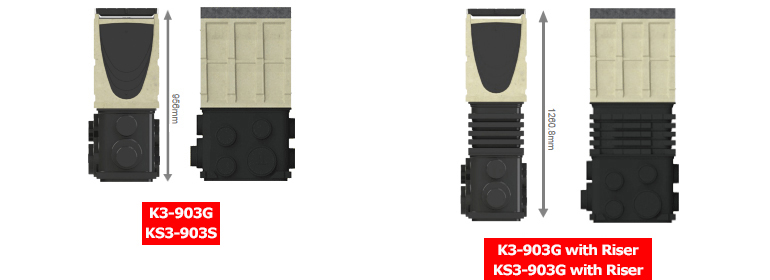

300mm wide in-line pits

Grates for 300mm In-line pits




   300mm wide Trench Drain In-line pits Parts List

K300 System Parts table Part No. Invert Depths Overall Depths
Weight
(kg)
Galv Rail S/S Rail Female (mm) Male (mm) Female (mm) Male (mm)
Type 900 In-line pit (0.5m)2 141821 141822 - - 956 956 39.9
Type 900 In-line plastic rubbish basket 98653 - - - - 1.6
Optional plastic riser 141729 - - 300 300 4.5
Plastic rubbish basket - long 98665 - - - - 1.8

Notes:
2. In-line pit assembly (polymer concrete top with galvanised (G) /stainless (S) edge rail, plastic base & removable QuickLok Bar)

   300mm wide Trench Drain In-line pits Specification Information (Spec Info) Sheets
