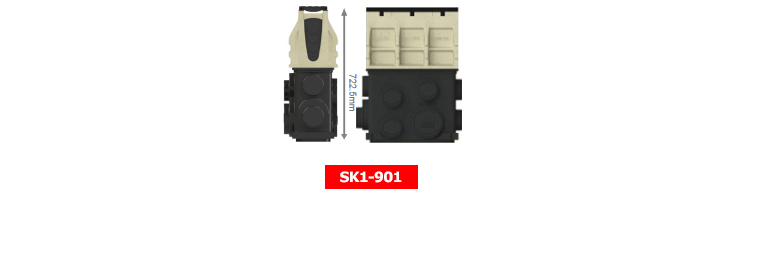

In-line pits - to suit S100K
In-line pits are available with integrally cast in ductile iron edge rails. Grates are secured with the PowerLok boltless locking mechanism.
100mm wide Trench Drain In-line pits Parts List
S100K System Parts table |
Part No. |
Invert Depths |
Overall Depths |
Weight (kg) |
| Slotted |
Heelsafe |
Female (mm) |
Male (mm) |
Female (mm) |
Male (mm) |
Slotted |
Heelsafe |
| Type 900 In-line pit (0.5m)2 |
141779 |
141780 |
- |
- |
737 |
737 |
44.9 |
46.1 |
| Type 900 In-line plastic rubbish basket |
01498 |
- |
- |
- |
- |
0.5 |
Notes:
2. In-line pit assembly (polymer concrete top with ductile iron edge rail, PowerLok grate & plastic base
100mm wide Trench Drain In-line pits Specification Information (Spec Info) Sheets
300mm internal width
300mm
internal width
