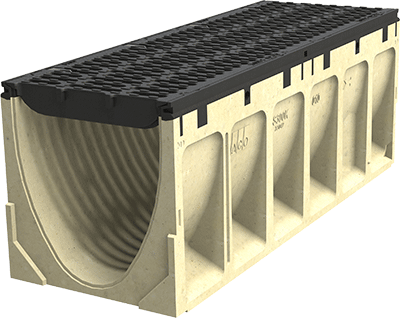

S300K

Features a 300mm internal width with either a slotted or Iron Intercept Heelsaferegistration markAnti-Slip grate designed to withstand the heaviest applications up to Load  Class G (AS 3996).

Grates

In-line pits

Accessories

KlassikDrain K100
  • Supplied complete with grate
  • 1-40 sloped system
  • 0.5% slope
  • Developed V-shaped profile
  • 5 neutrals
  • 4 half metres
  • Knock outs every 5th channel
  • Installation device
  • Visible channel markings
  • 300mm internal width
  • Slotted or Iron Intercept
    Heelsaferegistration mark Anti-Slip grate available
  • In-line pit






   S300K System Layout

PowerDrain system layout

   S300K Parts List


S300K System Parts table
Part No. Invert Depths Overall Depths Weight (kg)
Slotted Heelsafe Female (mm) Male (mm) Female (mm) Male (mm) Slotted Heelsafe
SK3-00 Neutral channel - (1m)1 150241 150541 300 300 325 325 107.9 97.5
SK3-1 Sloped channel - (1m) 150201 150501 300 305 325 330 107.9 97.4
SK3-2 Sloped channel - (1m) 150202 150502 305 310 330 335 108.4 97.9
SK3-3 Sloped channel - (1m) 150203 150503 310 315 335 340 109 98.5
SK3-4 Sloped channel - (1m) 150204 150504 315 320 340 345 109.5 99
SK3-5 Sloped channel - (1m)1 150205 150505 320 325 345 350 110.1 99.6
SK3-6 Sloped channel - (1m) 150206 150506 325 330 350 355 110.7 100.2
SK3-7 Sloped channel - (1m) 150207 150507 330 335 355 360 111.2 100.7
SK3-8 Sloped channel - (1m) 150208 150508 335 340 360 365 111.8 101.3
SK3-9 Sloped channel - (1m) 150209 150509 340 345 365 370 112.3 101.8
SK3-10 Sloped channel - (1m)1 150210 150510 345 350 370 375 112.9 102.4
SK3-010 Neutral channel - (1m)1 150242 150542 350 350 375 375 112.9 102.4
SK3-0103 Neutral channel - (0.5m)1 150245 150545 350 350 375 375 59.7 54.5
SK3-11 Sloped channel - (1m) 150211 150511 350 355 375 380 113.4 102.9
SK3-12 Sloped channel - (1m) 150212 150512 355 360 380 385 114 103.5
SK3-13 Sloped channel - (1m) 150213 150513 360 365 385 390 114.6 104.1
SK3-14 Sloped channel - (1m) 150214 150514 365 370 390 395 115.1 104.6
SK3-15 Sloped channel - (1m)1 150215 150515 370 375 395 400 115.7 105.2
SK3-16 Sloped channel - (1m) 150216 150516 375 380 400 405 116.2 105.7
SK3-17 Sloped channel - (1m) 150217 150517 380 385 405 410 116.8 106.3
SK3-18 Sloped channel - (1m) 150218 150518 385 390 410 415 117.3 106.8
SK3-19 Sloped channel - (1m) 150219 150519 390 395 415 420 117.9 107.4
SK3-20 Sloped channel - (1m)1 150220 150520 395 400 420 425 118.5 108
SK3-020 Neutral channel - (1m)1 150244 150544 400 400 425 425 118.5 108
SK3-0203 Neutral channel - (0.5m)1 150247 150547 400 400 425 425 62.9 57.7
SK3-21 Sloped channel - (1m) 150221 150521 400 405 425 430 119 108.5
SK3-22 Sloped channel - (1m) 150222 150522 405 410 430 435 119.6 109.1
SK3-23 Sloped channel - (1m) 150223 150523 410 415 435 440 120.2 109.7
SK3-24 Sloped channel - (1m) 150224 150524 415 420 440 445 120.7 110.2
SK3-25 Sloped channel - (1m)1 150225 150525 420 425 445 450 121.2 110.7
SK3-26 Sloped channel - (1m) 150226 150526 425 430 450 455 121.8 111.3
SK3-27 Sloped channel - (1m) 150227 150527 430 435 455 460 122.4 111.9
SK3-28 Sloped channel - (1m) 150228 150528 435 440 460 465 122.9 112.4
SK3-29 Sloped channel - (1m) 150229 150529 440 445 465 470 123.5 113
SK3-30 Sloped channel - (1m)1 150230 150530 445 450 470 475 124.1 113.6
SK3-030 Neutral channel - (1m)1 150246 150546 450 450 475 475 124.1 113.6
SK3-0303 Neutral channel - (0.5m)1 150249 150549 450 450 475 475 66.2 61.0
SK3-31 Sloped channel - (1m) 150231 150531 450 455 475 480 124.6 114.1
SK3-32 Sloped channel - (1m) 150232 150532 455 460 480 485 125.2 114.7
SK3-33 Sloped channel - (1m) 150233 150533 460 465 485 490 125.7 115.2
SK3-34 Sloped channel - (1m) 150234 150534 465 470 490 495 126.3 115.8
SK3-35 Sloped channel - (1m)1 150235 150535 470 475 495 500 126.9 116.4
SK3-36 Sloped channel - (1m) 150236 150536 475 480 500 505 127.4 116.9
SK3-37 Sloped channel - (1m) 150237 150537 480 485 505 510 128 117.5
SK3-38 Sloped channel - (1m) 150238 150538 485 490 510 515 128.5 118
SK3-39 Sloped channel - (1m) 150239 150539 490 495 515 520 129.1 118.6
SK3-40 Sloped channel - (1m)1 150240 150540 495 500 520 525 129.6 119.1
SK3-040 Neutral channel - (1m)1 150248 150548 500 500 525 525 129.6 119.1
SK3-0403 Neutral channel - (0.5m)1 150250 150550 500 500 525 525 69.9 64.7
Type 900 Inline Pit2 141783 141784 - - 956 956 68.7 63.5
Type 900 In-line plastic rubbish basket 98653 - - - - 1.6
Optional plastic riser 141729 - - 300 300 4.5
Plastic rubbish basket - long 98665 - - - - 1.8
Universal end cap 96827 - - 520 520 1.1
Installation device 97479 - - - - 2.2
Grate removal tool 01318 - - - - 0.1
PowerLok safety clip 10443 - - - - -

Notes:
1. This channel offers bottom knockout feature; S300K - 150mm & 200mm round.
2. In-line pit assembly (polymer concrete top with ductile iron edge rail, PowerLok grate & plastic base)
3. Channel and grate assembly come complete.

   S300K Specification Information (Spec Info) Sheets

   S300K Site Installation Files

Range System AS 3996 Grass PAVERS 1  PAVERS 2  ASPHALT 1  ASPHALT 2 CONCRETE
haunch to top pavers to edge haunch to top sloped haunch haunch to top haunch to top
PowerDrain S300K C-D   pdf  dwg pdf  dwg pdf  dwg pdf  dwg pdf  dwg
E-G   pdf  dwg pdf  dwg pdf  dwg pdf  dwg pdf  dwg
