PowerDrain Accessories

A complete trench drain solution requires more than just channels and grates. Correct solution of outlets to plumbing pipework (outlets through In-line pits or direct pipe connection) plus closing caps at starts and ends of trench and other items such as pipe outlet connections, installation devices, strainers and foul air traps are all part of a complete system.



   PowerLok - safety clip

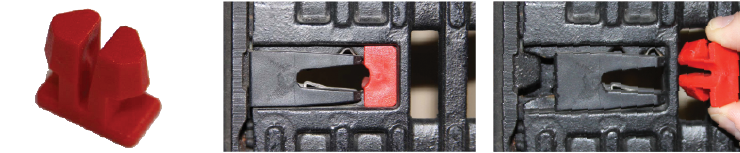

If an installation requires extra security of the PowerLok lock down of the grates. The safety clip can be inserted once the PowerLok is engaged if the PowerLok is unlocked (the grates is not captive) the red safety clip cannot be inserted. The safety clip is molded in red plastic so a quick visual check is easily accomplished that confirms all of the PowerLok are engaged.

PowerLok Safety clip

For areas of security or safety
concerns the PowerLok safety clip provides a visual alert for
PowerLok lockings.
The safety clip push fits next to the locked PowerLok device. Safety clip sits flush with grate surface and grate cannot be unlocked.
To open PowerLok device the safety clip must be removed. If no red block visible the locking is not guaranteed, providing a visual alert that grates may not be locked.

   End Cap

Closing cap - Fits all channels. Manufactured from gray ABS to complement edge rail. Guides aid cutting to correct height. 100mm bell end connection (K100), 100mm and 150mm bell end connection (K200), 150mm and 200mm bell end connection (K300) to pipe. Seal using PVC-ABS cement.

S100 end cap

S100 - 100mm

Part Number - 96824

S200 end cap

S200 - 100mm + 150mm

Part Number - 96823

S300 end cap

S300 - 150mm + 200mm

Part Number - 96827

   Installation device & template

Installation devices are used to align channels to create a complete trench run. Once the installation is complete using these devices the concrete is poured around the device and channels. Installation devices allow a single concrete pour.

Installation Device Instructions
Installation Template Drawings



Installation device 100mm


Installation device 200mm

Installation device 300mm

For 100mm wide channels

Part Number - 97477

For 200mm wide channels

Part Number - 97478

For 300mm wide channels

Part Number - 97479



   Vertical outlet strainer - 100mm bottom outlet only

Strainer for 100mm vertical outlets, prevents large particles of debris flowing into underground pipe system and causing blockages.

strainer
  1. Flexible prongs fit inside
    100mm pipe
  2. Lip on both sides hangs
    strainer from base of channel
outlet strainer
